Design Features

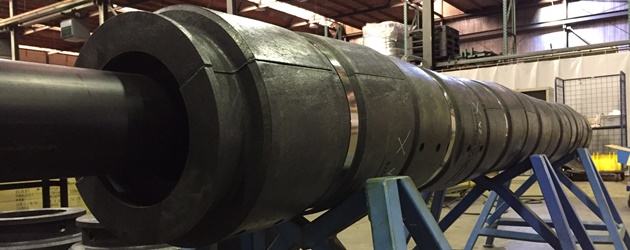

The Lankhorst Clearance Protector system is designed to be safe to handle and fast to install. The design features interlocking half shells to provide a close fitting protection around the pipeline, whilst also ensuring alignment during installation. The clearance protection system is secured using either corrosion resistant Alloy 625 or glass filled nylon strapping, placed in recesses on the product during installation. These recesses ensure an even spacing of the strapping along the pipeline without measuring along with a smooth consistent outer diameter.

To meet the requirements of different offshore applications and environments, the Clearance Protection System product range is available in a range of standard grades of Polyurethane and Polyethylene. All high performance PU and PE compounds used in production have been subjected to extensive testing and trials to ensure optimum performance in the demanding marine environment. Specific material formulations with custom properties can also be made available. A range of testing can also be carried out at Lankhorst’s in house testing facilities on both the material and also the end product. Demonstration of the bending radius of the product can be executed as required.

IMG_0904
Subsea Cable Protection
Need clearance between 2 cables or pipelines crossing? This system is safe to handle and fast to install!
